SURETHERM PRO 1X
Log in or register to see pricing

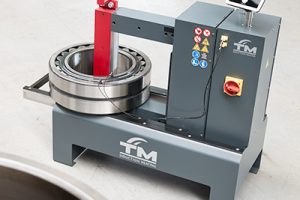

The SURETHERM PRO 1X is the heavy-duty industrial model in TM Induction Heating’s SURETHERM range, built for controlled heating of large bearings, gears, and other ring-shaped components. It is designed for higher loads and larger diameters, delivering reliable, tension-free heating for parts up to 400 kg in demanding industrial environments.
Key functions include dual-sensor operation and ramp mode, enabling precise thermal control and repeatable heating cycles. The industrial touchscreen supports fast setup, real-time monitoring, and heating graph display. Cycle data can be exported via USB for documentation, and firmware updates are supported throughout the product’s life cycle.
Designed for production and maintenance departments, the SURETHERM PRO 1X prioritizes robustness and predictable performance. The fixed yoke design supports stable handling of heavy workpieces, and optional transport or table solutions help integrate the unit into your workflow where consistent results and operator efficiency matter.

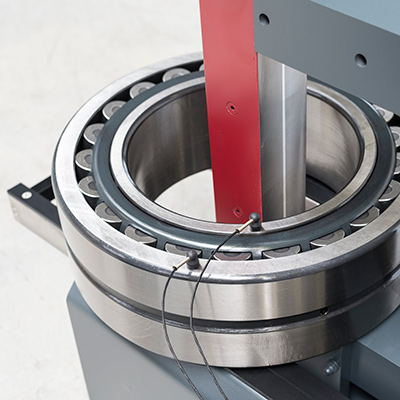

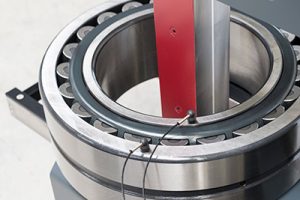

The following yokes are included with SURETHERM PRO 1X: 80 x 80. Additional yoke sizes are listed in our Datasheet. Two magnetic temperature sensors with a length of 1000 mm are included as well.
The SURETHERM PRO 1X can also be supplied on a trolley (optional), so the device can be used on different locations in the workplace.
Specifications
| Weight | 295 kg |
|---|---|
| Dimensions | 72 × 122 × 125 cm |
| Input (Supplied Power) | 380V-32A-50Hz, 380V-32A-60Hz, 400V-32A-50Hz, 440V-30A-50Hz, 440V-30A-60Hz, 460V-30A-50Hz, 460V-30A-60Hz, 480V-30A-50Hz, 480V-30A-60Hz, 500V-25A-50Hz, 500V-25A-60Hz, 575V-25A-60Hz |
DATASHEET SURETHERM PRO 1X
ELECTRICITY
Power rating
12.8 kVA
Voltage
400 – 575 V
Current max.
32.0 A
Frequency
50 – 60 Hz
WORKPIECE MAX. WEIGHT
Bearings and other parts
400.0 kg
WORKPIECE
Min. bore Vertical
ø115.0 mm
Min. bore Horizontal
30.0 mm
Max. outer diameter Vertical
728.0 mm
Max. outer diameter Horizontal
1000.0 mm
Max. workpiece width
290.0 mm
Max. temperature
240.0 °C
WEIGHT
Without yokes
157 kg
DIMENSIONS
L × W × H
850 × 410 × 1050 mm
CONTROLS
Temperature (1 sensor)
0-240°C (custom: 0-400°C)
Time
0-99 min
Temperature (2 sensor)
0-240°C ΔT 20-50°C
Time / Temperature Ramp
0-99 min / 5-240°C
Set power
5-100%
TOUCHSCREEN
Heating Temperature (1 sensor)
Actual Temperature and Power, Set Temperature and Power, Timer
Heating time
Actual Temperature and Power, Set Temperature, Timer
Heating Temperature (2 sensor)
Set- and actual temperature, time and power. Actual temperature difference between inside and outside diameter
Heating Time / temp ramp
Set- and actual temperature, time and power
Languages
English, Spanish, German, French, Italian, Slovenian, Swedish, Russian, Korean, Croatian, Japanese, Polish
Error report
Shown in display
OTHERS
Heating graph
Shown in display
External interface
USB 2.0 Port for download graph and heating cycles and up load new software
Sound signal
Buzzer
Temperature hold
Yes
Demagnetizing
< 2A/cm
Magnetic probe
2 Sensors (standard)
Thermal safety guard coil
Yes
WARRANTY
Warranty period
Max. 36 Months (24+12)
